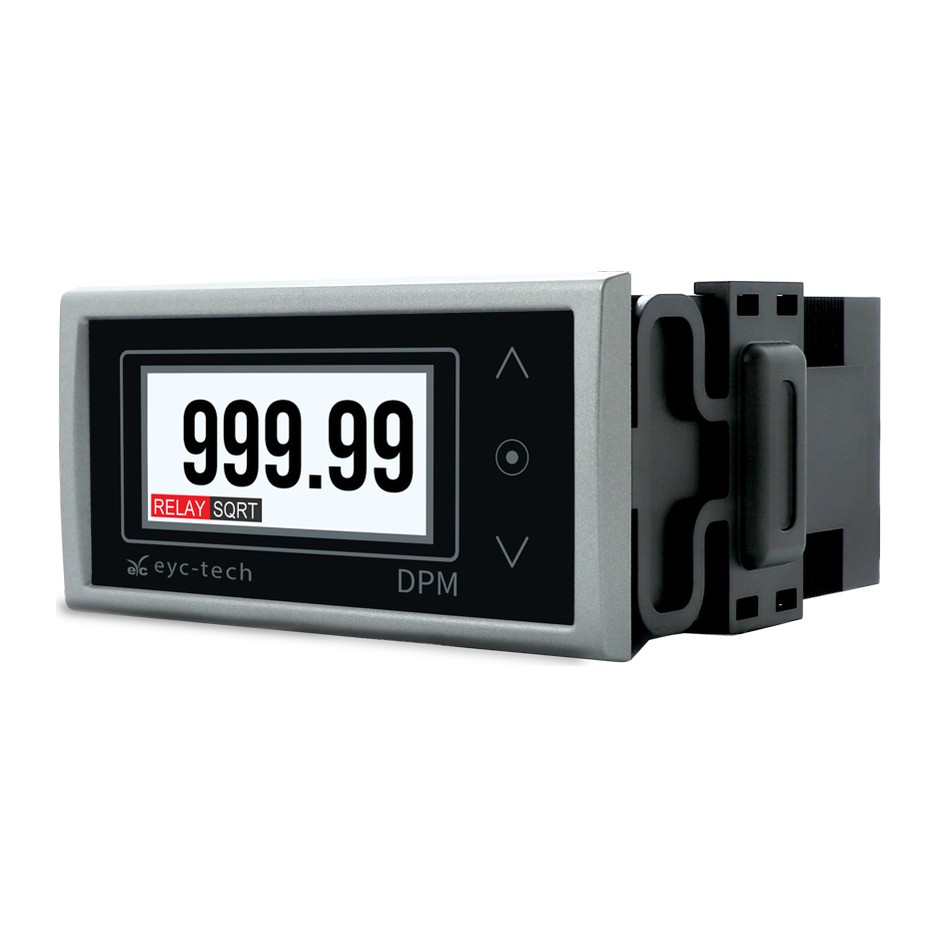

eyc-tech DPM03 Multifunction Signal Display Monitor
- Shows any current or voltage signal on a 5-digit 2″ LCD
- Relay alarms, RS-485 and analog retransmission
- AC 90-250 V or DC 24 V power, IP65 front panel
Volume pricing for OEMs, panel builders and distributors. Click Add to Quote, or email sales@sensorcomp.com with the model, quantity and application. We reply within one business day.
0
People watching this product now!
Payment Methods:
The DPM03 is a panel display for 4-20 mA and voltage signals, with alarm relays and an auxiliary supply to power the transmitter.
Specifications
| Display | 2″ LCD, 5 digits |
|---|---|
| Input | Current / voltage |
| Output | Current / voltage / relay / RS-485 |
| Accuracy | ±0.1% of full scale ±1 digit |
| Power | AC 90-250 V / DC 24 V; auxiliary DC 18-26 V, 50 mA |
| Protection | IP65 front panel |
Typical applications
Control panels, local readout for any eyc-tech transmitter, alarm points.
Downloads
Datasheet (PDF) – includes the full manufacturer specifications, dimensions, wiring and ordering codes.
Specifications are from the manufacturer and may vary by model and option – tell us your application and we will confirm the right configuration.
| Output | 0-10 V, 4-20 mA, Relay, RS-485 |
|---|---|
| IP rating | IP65 |
