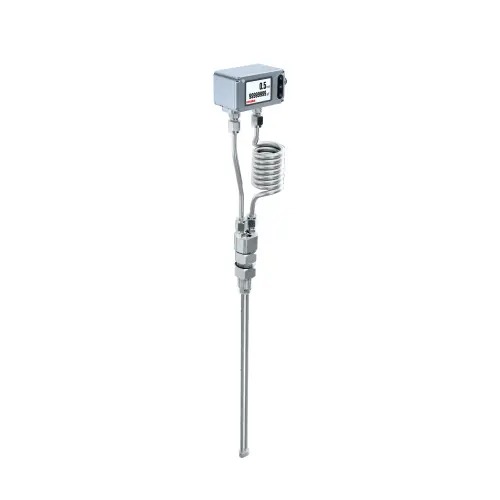

eyc-tech FDM06-P Averaging Thermal Mass Air Flow Transmitter
- Multi-point averaging probe for ducts and stacks
- 0.5 to 60 m/s
- 4-20 mA / 0-10 V / relay / RS-485, IP65
Volume pricing for OEMs, panel builders and distributors. Click Add to Quote, or email sales@sensorcomp.com with the model, quantity and application. We reply within one business day.
0
People watching this product now!
Payment Methods:
The FDM06-P averages air velocity across the duct rather than at one point, which gives a more reliable airflow figure in real ductwork. Send us the duct size and we’ll size the probe.
Specifications
| Sensor | Hot-wire thermal |
|---|---|
| Range | 0.5 to 60 m/s |
| Output | 4-20 mA / 0-10 V / relay / RS-485 |
| Accuracy | ±(1.5% of reading + 0.8 m/s) |
| Protection | IP65 |
Typical applications
Air handling units, process exhaust, stacks, ventilation verification.
Downloads
Datasheet (PDF) – includes the full manufacturer specifications, dimensions, wiring and ordering codes.
Specifications are from the manufacturer and may vary by model and option – tell us your application and we will confirm the right configuration.
| Output | 0-10 V, 4-20 mA, Relay, RS-485 |
|---|---|
| IP rating | IP65 |
