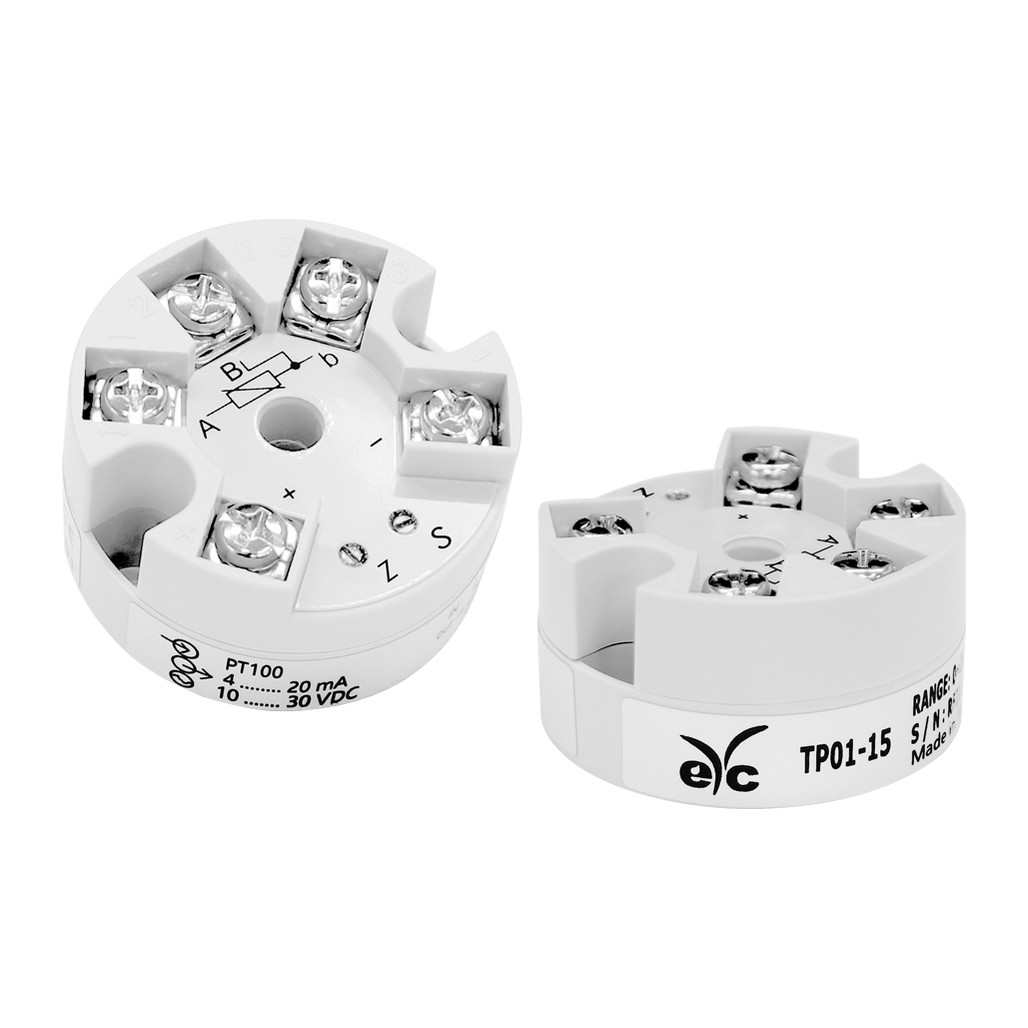

eyc-tech TP01 Head-Mount Temperature Transmitter
- Turns a 3-wire Pt100 RTD signal into a 2-wire, loop-powered 4-20 mA output
- -50 to 400 °C input range, ±0.1% of full scale, zero and span adjustable
- Mounts inside the connection head – order it alone or as a complete assembly with our thermowell and RTD
Volume pricing for OEMs, panel builders and distributors. Click Add to Quote, or email sales@sensorcomp.com with the model, quantity and application. We reply within one business day.
Payment Methods:
The TP01 is a compact transmitter that fits inside the connection head of an RTD assembly. It is powered by the 4-20 mA loop itself, so there is no separate supply to wire. Buy it on its own, or let us quote a complete temperature assembly – SensorComp thermowell, RTD, head and TP01 – as one part number.
Specifications
| Input | Pt100 RTD, 3-wire |
|---|---|
| Range | -50 to 400 °C (common ranges 0-100 °C and 0-200 °C) |
| Output | 4-20 mA, 2-wire loop powered |
| Accuracy | ±0.1% of full scale |
| Adjustment | Zero and span |
| Protection | IP30 housing / IP10 terminals |
Typical applications
Process temperature points, boiler and heating loops, HVAC plant rooms, OEM skids and machinery.
Downloads
Datasheet (PDF) – includes the full manufacturer specifications, dimensions, wiring and ordering codes.
Specifications are from the manufacturer and may vary by model and option – tell us your application and we will confirm the right configuration.
| Output | 4-20 mA |
|---|---|
| IP rating | IP30 |
